Quartet Square
Cantilever Umbrella
A cantilever umbrella eliminates the centre post providing maximum dining or lounging space. At Flexshade®, we take structural integrity and design excellence seriously. Each model is not only engineered to meet worldwide wind codes, our cantilever umbrellas are also designed with the optional pivoting mechanism at the top of the column. This unique design approach produces superior visual appeal and reduces flexure and footing requirements. Square models can also be linked together to form larger spans with waterproof infill panels.Flexshade® cantilever umbrellas are available in Australia and worldwide. Representatives cover many regions, including Sydney, the Gold Coast, Adelaide, Perth, South East Asia, Europe, USA and India. If we're not in your area, we can economically pack and ship directly to you.
Click here to view our photo gallery for examples of what you can do with a cantilever umbrella.
» Click here to contact us for more information about a cantilever umbrella.
Square
| TYPE |
A |
B |
C |
| Q 8S Square |
3085 10' 2" |
2400 7' 10" |
2550 8' 4" |
| Q 10S Square |
3180 10' 5" |
2400 7' 10" |
3275 10' 9" |
| Q 14S Square |
3575 11' 9" |
2400 7' 10" |
4275 14' |
| Q 5MS Square |
3756 12' 3" |
2450 8' 0" |
5000 16' 5" |
Features
- Certified C.P. Engineered Non Retractable Design
- Structural Steel Support Struts - no wires used
- Acrylic or Tedlar PVC/Polyester Fully Welded Membranes
- Triplex Hot Zinc & Powder Coated Steel frames
- Marine Grade Stainless Cables & Fittings
- Engineered for winds up to 160km/hr - 100mph
- 10 Year Structural Warranty
Options
- Electropolished Stainless Steel Frames
- Provision for Electric Lighting and Heating Units
- Full range of Dulux RAL powdercoat colours
- 24 Standard Membrane Colours
- Pivoting mechanism
» Click here to contact us for more information about a cantilever umbrella.

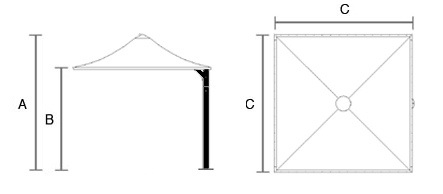

Curtain
| TYPE |
A |
B |
C |
| Q 8CS Curtain |
3085 10' 2" |
2400 7' 10" |
2550 8' 4" |
| Q 10CS Curtain |
3181 10' 5" |
2400 7' 10" |
3275 10' 9" |
| Q 14CS Curtain |
3575 11' 9" |
2400 7' 10" |
4275 14' |
| Q 5MCS Curtain |
3825 12' 6" |
2400 7' 10" |
5000 16' 5" |
Hexagonal
| TYPE |
A |
B |
C |
D |
| F 12S Hex |
3100 10' 2" |
2400 7' 8" |
3120 10' 3" |
3600 11' 9" |
| F 16S Hex |
3390 11' 1" |
2400 7' 8" |
4218 13' 10" |
4850 15' 11" |
| F 19S Hex |
3665 12' |
2400 7' 8" |
5020 16' 5" |
5800 19' |
FOLLOW THE SUN!
Multiply your shade cover by over 250% using our pivot option.
