Cantilever Umbrellas

A cantilever umbrella eliminates the centre post providing maximum dining or lounging space. At Flexshade®, we take structural integrity and design excellence seriously.

Our square cantilever umbrellas are engineered to meet worldwide wind codes and can be linked together to form larger spans with waterproof infill panels. They are also available in a straight edge Curtain Series. The unique design approach of our cantilever umbrellas produces superior visual appeal and reduces flexure and footing requirements.

Our Flexshade® Square models are also available as a DUET, see the Cantilever Umbrella Quartet “DUET” Specifications for more information.

cantilever umbrella

Cantilever Umbrella Features

  • Certified C.P. Engineered Non Retractable Design
  • Structural Steel Support Struts - no wires used
  • Acrylic or Tedlar PVC/Polyester Fully Welded Membranes
  • Zinc & Powder Coated Steel frames
  • Marine Grade Stainless Cables & Fittings
  • Engineered for winds up to 160km/hr - 100mph
  • 10 Year Structural Warranty

Options

  • Electropolished Stainless Steel Frames
  • Provision for Electric Lighting and Heating Units
  • Full range of Dulux RAL powdercoat colours
  • 16 Standard Membrane Colours
  • Pivoting mechanism


» Contact us for more information about a cantilever umbrella.

FOLLOW THE SUN!

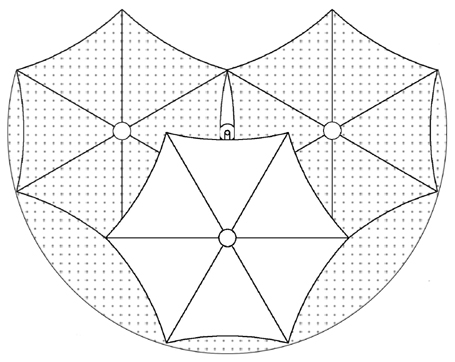

Our Square and Hexagonal Cantilever Umbrellas are available with a pivot option.

cantilever umbrella


Square Cantilever Umbrella

cantilever umbrella
TYPE
A
B
C
 Q 8S
Square
  3085
10' 2"		  2400
7' 10"		 2550
8' 4"
 Q 10S
Square
  3180
10' 5"		  2400
7' 10"		  3275
10' 9"
 Q 14S
Square
  3575
11' 9"		  2400
7' 10"		  4275
14'
 Q 5MS
Square
  3756
12' 3"		  2450
8' 0"		  5000
16' 5"
Square Cantilever Umbrella Specifications
Square Pivot Cantilever Umbrella Specifications
Cantilever Umbrella *CS Curtain Series Specifications

cantilever-umbrellas

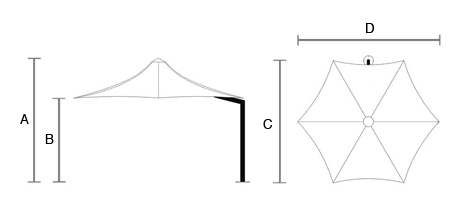

Hexagonal Cantilever Umbrella

cantilever-umbrellas
TYPE
A
B
C
D
 F 12S
Hex
 3100
10' 2"		 2400
7' 8"		 3120
10' 3"		 3600
11' 9"
 F 16S
Hex
 3390
11' 1"		 2400
7' 8"		 4218
13' 10"		 4850
15' 11"
 F 19S
Hex
 3665
12' 		2400
7' 8"		 5020
16' 5"		 5800
19'
Hexagonal Cantilever Umbrella Specifications
Hexagonal 'Pivot' Cantilever Umbrella Specifications

View our photo gallery for examples of our cantilever umbrellas including our Duet range.


Multiply your shade cover by over 250%!
